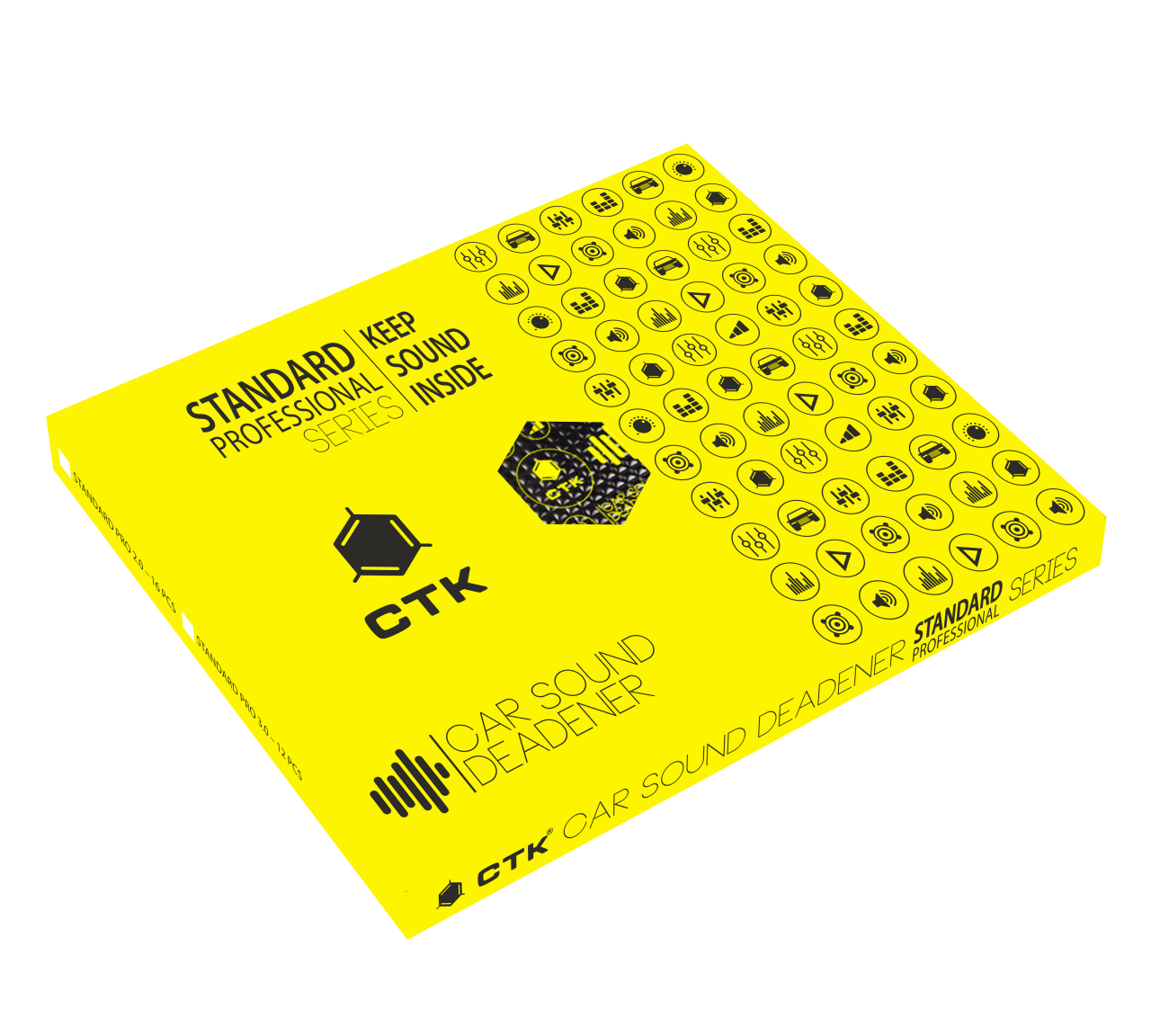

CTK Standard Professional is a modern, advanced material that absorbs low frequency vibrations.
This series of materials combines high quality at a reasonable price.
Three types of thickness allow you to choose a mat which best suits the corresponding application.
The important vibration absorbing properties are enhanced by the improved formula of mastic layer, as well as the
embossed aluminum foil 100 microns thick, which acts to reduce structure-borne noises.

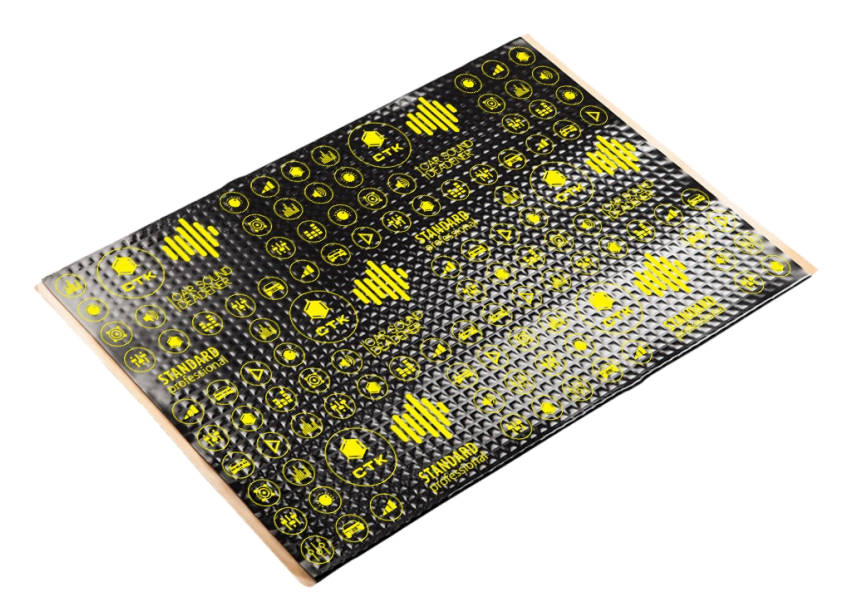

It is available in the form of a self-adhesive mat, made on the basis of butylrubber composite and specialized polymer additives.
On the outer face of the mat there is an extruded aluminium foil with a thickness of 100 micrometres (0.1 mm), which strengthens and
mechanically protects the
damping material while improving its acoustic properties. Thanks to a specially selected butyl rubber composite; high elasticity, moderate weight and better adhesion properties (adhesion to the
surface increases with time) are achieved. This material retains a high vibration damping efficiency at the level offered by competing materials with greater thickness and greater weight. CTK Standard Professional vibro-acoustic mats are products intended for more demanding customers who value high
quality, efficiency and comfort at a reasonable price.
Mats are designed to effectively suppress
noise, vibration and resonance of acoustic elements of the car body and upholstery (doors, floor,
roof, luggage rack, engine hood, wheel arches, plastic parts, upholstery elements, etc.). They can
also be used indoors to silence cases of computers, air conditioners, RTV and household appliances. The product is non-toxic, odourless, waterproof, does not absorb moisture and does not
decompose under the influence of weather conditions. It has anti-corrosion and sealing properties. Due to the high value of the mechanical loss factor (MLF) and moderate weight, CTK Standard Professional damping mats are one of the most effective anti-vibration materials for reducing
vibration and vehicle noise in their price range. They are very well suited for work aimed at improving the acoustics of the car interior in case of installation and use of car audio equipment, as
well as during full sound insulation of vehicles or when upgrading sound insulation, for example,
after repairing vehicle body components. CTK Standard Professional is a perfectly balanced solution that combines high quality and damping efficiency, as well as moderate weight and reasonable price.
| Door | Bonnet | Boot | Floor | Roof | Wheel Arch (ext) | Wheel Arch (int) | |
|---|---|---|---|---|---|---|---|
| 2.0mm |  |
|
|
|
|
|
|
| 3.0mm | |
|
|
|
| Thickness(mm) | 2.0mm | 3.0mm |
|---|---|---|
| Sheet Size(mm) | 370 x 500 | 370 x 500 |
| Foil Thickness(um) | 100 | 100 |
| Weight per sheet(g) | 650 | 860 |
| Sheets in package | 16 | 12 |
| Coverage (m2) per package | 2.96 | 2.22 |
