PRACTIC Series

CTK Practic is a vibration absorbing material in the form of a self-adhesive mat, made from butyl composite and polymers, characterised by a low resonant frequency, good adhesion to the surface and very high flexibility.

It is basic vibrodamping material combining effective vibration absorption properties at a reasonable price. Foil 60 microns thick provides the material with a great degree of flexibility which is necessary when facing irregular shapes. The universal thickness of material (2 mm) allows easy treatment on all essential body components such as doors, luggage, trunk, roof, floor and the bonnet.

CTK PRACTIC

What is the PRACTIC Series?

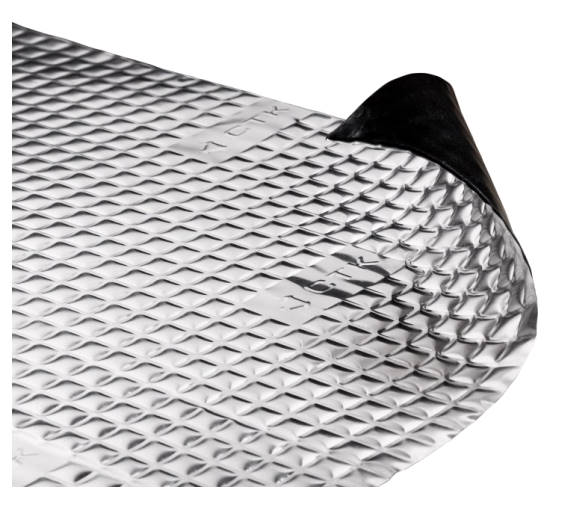

CTK Practic Sheet

CTK Practic is a vibration absorbing material in the form of a self-adhesive mat, made on the basis of butyl composite and polymers, characterised by a low resonant frequency, good adhesion to the surface and very high flexibility. Outside there is an embossed aluminium foil with a thickness of 0.06 mm (60 micrometres), which provides mechanical protection, reinforcement of the damping material and further improvement of its acoustic properties. CTK materials from the Practic range are a good combination of high quality and good damping characteristics, at an attractive price. This product is ideal for applications across many industries.

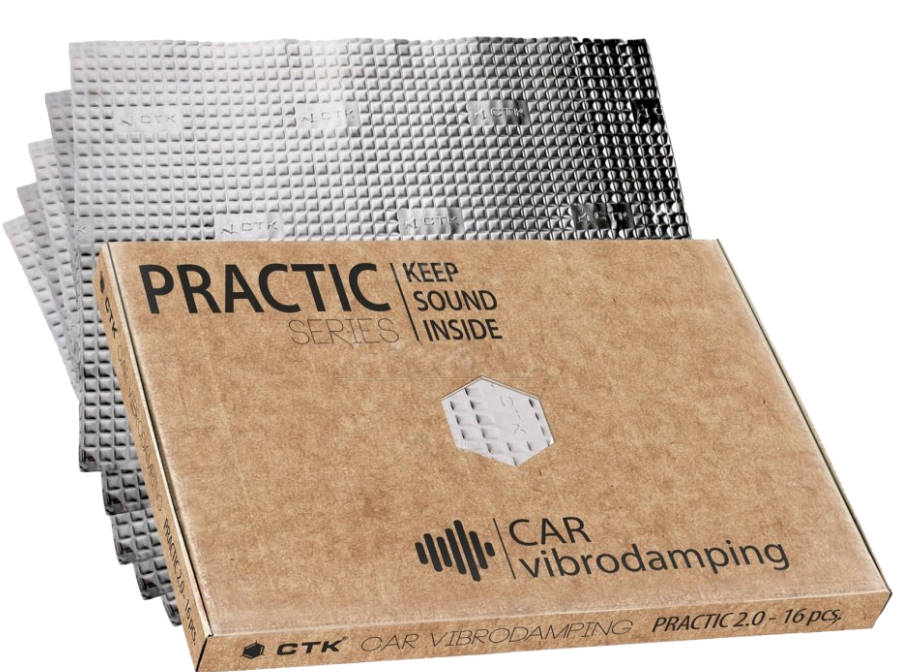

CTK Practic Pack

In a comparable price range, CTK Practic mats have one of the highest values of mechanical loss factor (MLF), which determines the ability of a material to effectively dampen vibrations. These materials are designed for basic, inexpensive sound, vibration and resonance absorption of acoustic elements of the car body (doors, floor, roof, trunk, engine hood, upholstery elements, etc.). They can also be used indoors, for example, for silencers and industrial equipment, computer equipment, air conditioning equipment, household appliances and even tin sinks, shower trays and bathtubs. The product is nontoxic, waterproof, does not absorb moisture and does not decompose under the influence of weather conditions. It has anti-corrosion and sealing properties. CTK Praktic materials are also well suited for work aimed at basic improvement in the acoustics of the car when fitting and using car audio equipment, as well as when refitting or upgrading sound insulation, for example, after repairing vehicle body components..

CTK Practic materials are self-adhesive, very flexible and easy to apply on flat or complex shaped surfaces. They can be installed in a wide range of temperatures without the need for heating, however, maximum operating comfort is achieved at ambient temperatures above +10ÂșC. The surface must be dry, clean and very well degreased. In order to maximize the damping properties, the mat must be firmly pressed after sticking, for example, using a roller, to adhere tightly to the entire surface of the damping surface, to avoid the formation of air gaps. A self adhesive butyl layer has self-vulcanization properties which, after some time, further improve the adhesive properties of the material.

Where can I use CTK Practic?

Door Bonnet Boot Floor Roof Wheel Arch (ext) Wheel Arch (int)
2.0mm Tick mark Tick mark Tick mark Tick mark Tick mark Tick mark Tick mark

Technical Specifications

Thickness(mm) 2.0mm
Sheet Size(mm) 370 x 500
Foil Thickness(um) 60
Weight per sheet(g) 640
Sheets in package 16
Coverage (m2) per package 2.96
